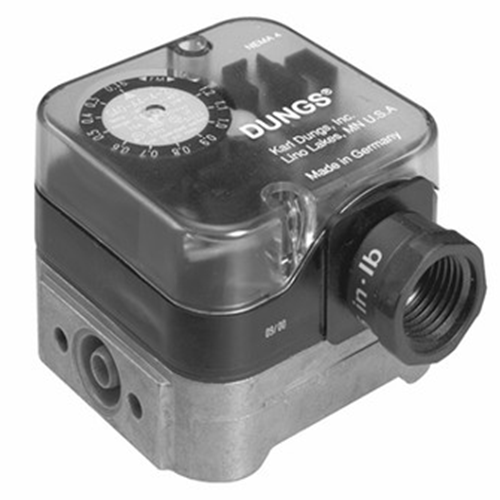

Dungs High or Low Gas Pressure Switch 12-60″ WC, Automatic Reset

Name: Dungs High or Low Gas Pressure Switch 12-60" WC, Automatic Reset
SKU: SWA1200X6000B
Availability: InStock

SKU: SWA1200X6000B Categories: Automatic, Combustion, Pressure Switches

$108.30

Dungs Part Number: 266922

Categories: Automatic, Combustion, Pressure Switches

Product Description

Dungs Gas Pressure Switches are designed for automatic gas burning equipment controls, offering adjustable pressure settings. Belonging to the GAO, GMH, and GML A4 series, these pressure switches facilitate making or breaking a circuit in response to changes in medium pressure relative to the set point. Ideal for industrial and commercial heating applications with 1/4″ NPT pipe connections, they are suitable for various gasses including natural gas, propane, butane, air, and other inert gasses.

Contact Customer Service

Reach a Real Person @: 1-800-922-7533

Open Monday – Friday, 8:00am – 5:00pm CST

Email Support

Same Day Support Response

Reset Type: Automatic Reset
Manufacturer: Dungs
Manufacturer Part Number: 266922
Approvals: UL, CSA and FM
Ratings: NEMA Type 4
Connection: 0.25″ NPT
Materials: Gas-conveying housing: aluminum die casting.
Diaphragms: NBR basis/Viton/Stainless steel
Protective Hood: polycarbonate
Switching Contacts: silver
Special Design: gold-plated silver
Silver (Ag) Contact Ratings: SPDT Switch 10A resistive/8A inductive @ 120 Vac
Electrical Ratings: DC min. 20 mA @ 24 VDC, max. 1 A @ 24 and 48 Vdc. Electrical screw terminals with 1/2 NPT Conduit connection. Neon light included.
Maximum Operating Pressure: 7 PSI (500 mbar)
Temperature: -40°F to 140°F (-40C to 60C)
Inches Water Column: 12-60″ W.C.
