Die Safety Block Adjustable with Screw
$607.04 – $2,745.04
Product Description

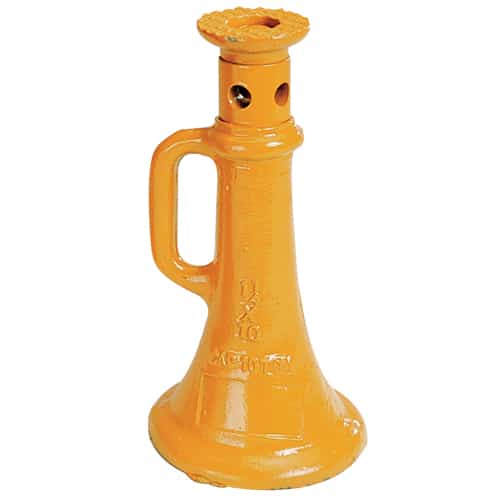

These adjustable die safety blocks feature a tough malleable-iron bell-bottom base. The blocks also have a convenient handle for lifting and precision-cut acme threads for easy adjustment and extra rigidity.
The adjusting screw can be easily adjusted up or down by hand. Turning holes are also provided in the screw neck to facilitate the use of a turning bar, if required.
To learn more about die blocks, we invite you to read our blog post “Demystifying Die Safety Blocks.”
Adjustable Die Safety Blocks Ordering Chart
| Part Number | Capacity in Tons | Length Closed + | Screw Adjustment = | Length Screw Adjustment Up | Base Diameter | Weight in Pounds | Safety Block Holder Part Number |
|---|---|---|---|---|---|---|---|
| KTS520* | 10 | 6.75" | 1.25" | 8" | 4.5" | 8 | KTS003 |
| KTS522 | 10 | 12.75" | 7.25" | 20" | 6.5" | 13 | KTS003 |
| KTS523 | 20 | 9.5" | 2.75" | 12.25" | 6" | 18 | KTS003 |
| KTS524 | 20 | 11.5" | 4.5" | 16" | 6.75" | 22 | KTS003 |
| KTS525 | 20 | 17.5" | 9.5" | 27" | 7.75" | 35 | KTS005 |
| KTS526 | 24 | 11.75" | 3.25" | 15" | 7.25" | 31 | KTS005 |
| KTS527 | 24 | 15.75" | 6.5" | 22.25" | 7.25" | 40 | KTS005 |
| KTS528 | 24 | 21.75 | 12" | 33.25" | 9.25" | 56 | KTS005 |

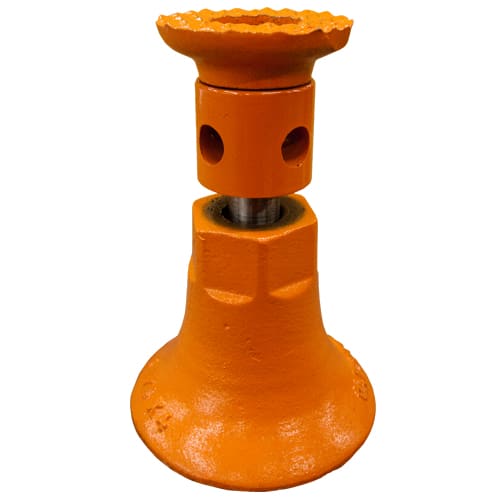

| * Does not have a handle |
