Products \ Machine Safeguarding \ Adjustable Screw Device for Octagonal Die Safety Blocks

Adjustable Screw Device for Octagonal Die Safety Blocks

SKU: DSBSCREWSERiES Categories: ,

Price range: $1,379.89 through $2,767.86

Categories: ,

Product Description

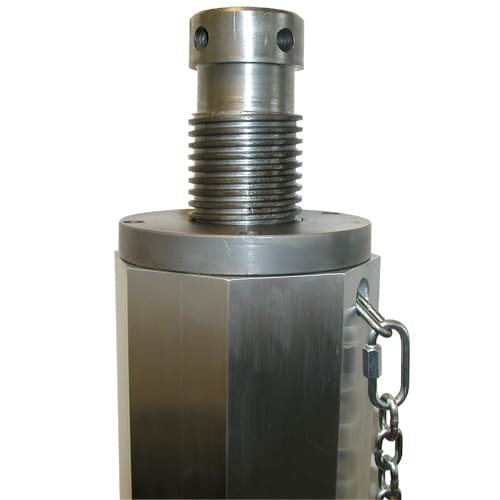

A steel heavy-duty adjustable screw device is added to octagonal-shaped die safety blocks. These screws are needed to prevent any space between the block and die when various dies are used or when the slide is adjusted.

To learn more about die blocks, we invite you to read our blog post “Demystifying Die Safety Blocks.”

Note: If an adjustable screw device is mounted to an octagonal safety block, you must use the approximate static loads shown in the chart. This is because the adjustable screw devices will not hold as heavy a static load as the octagonal safety blocks by themselves.

For octagonal die safety blocks only!

Contact Customer Service

Reach a Real Person @: 1-800-922-7533

Open Monday – Friday, 8:00am – 5:00pm CST

Email Support

Same Day Support Response

SKUBlock SizeInches of Adjustment
KTS574small2-inches (106,000 lb max)
KTS584small4-inches (102,500 lb max)
KTS625small6-inches (98,500 lb max)
KTS626small8-inches (94,500 lb max)
KTS627small10-inches (91,000 lb max)
KTS622small12-inches (87,500 lb max)
KTS575medium2-inches (73,000 lb max)
KTS585medium4-inches (70,000 lb max)
KTS628medium6-inches (67,000 lb max)
KTS629medium8-inches (64,000 lb max)
KTS630medium10-inches (61,000 lb max)
KTS623medium12-inches (58,000 lb max)
KTS598large6-inches (189,000 lb max)
KTS631large8-inches (181,000 lb max)
KTS632large10-inches (174,000 lb max)
KTS624large12-inches (167,000 lb max)
