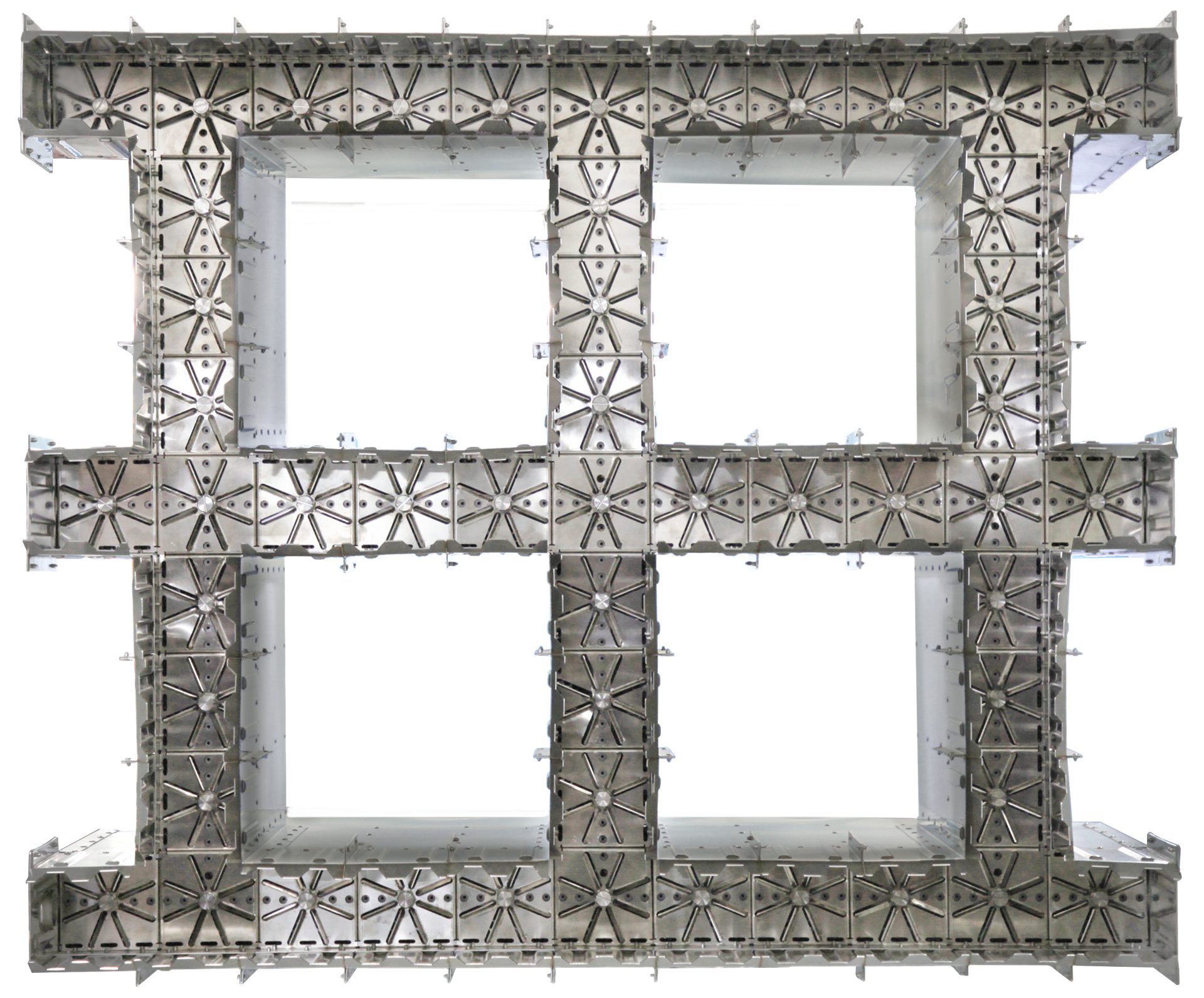

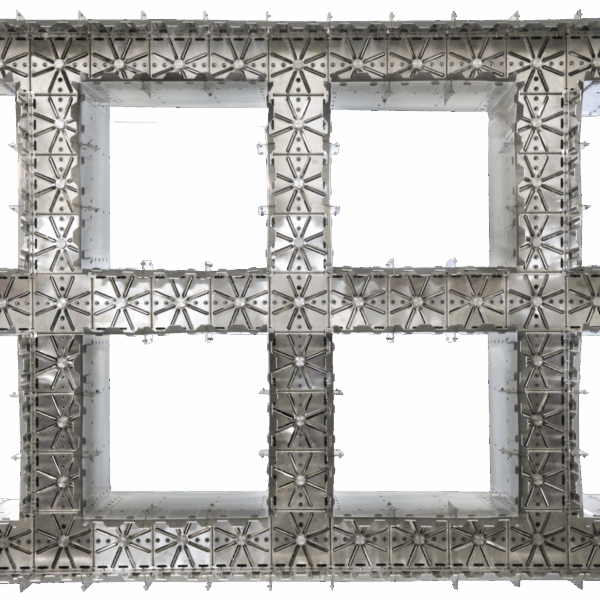

ANM 77 Series – Duct Burner
ANM77 Series Burner is patented product of Anderson Thermal Solutions, duct burner, for process air with low oxygen content, and recirculation air supplementary heating
Product Description

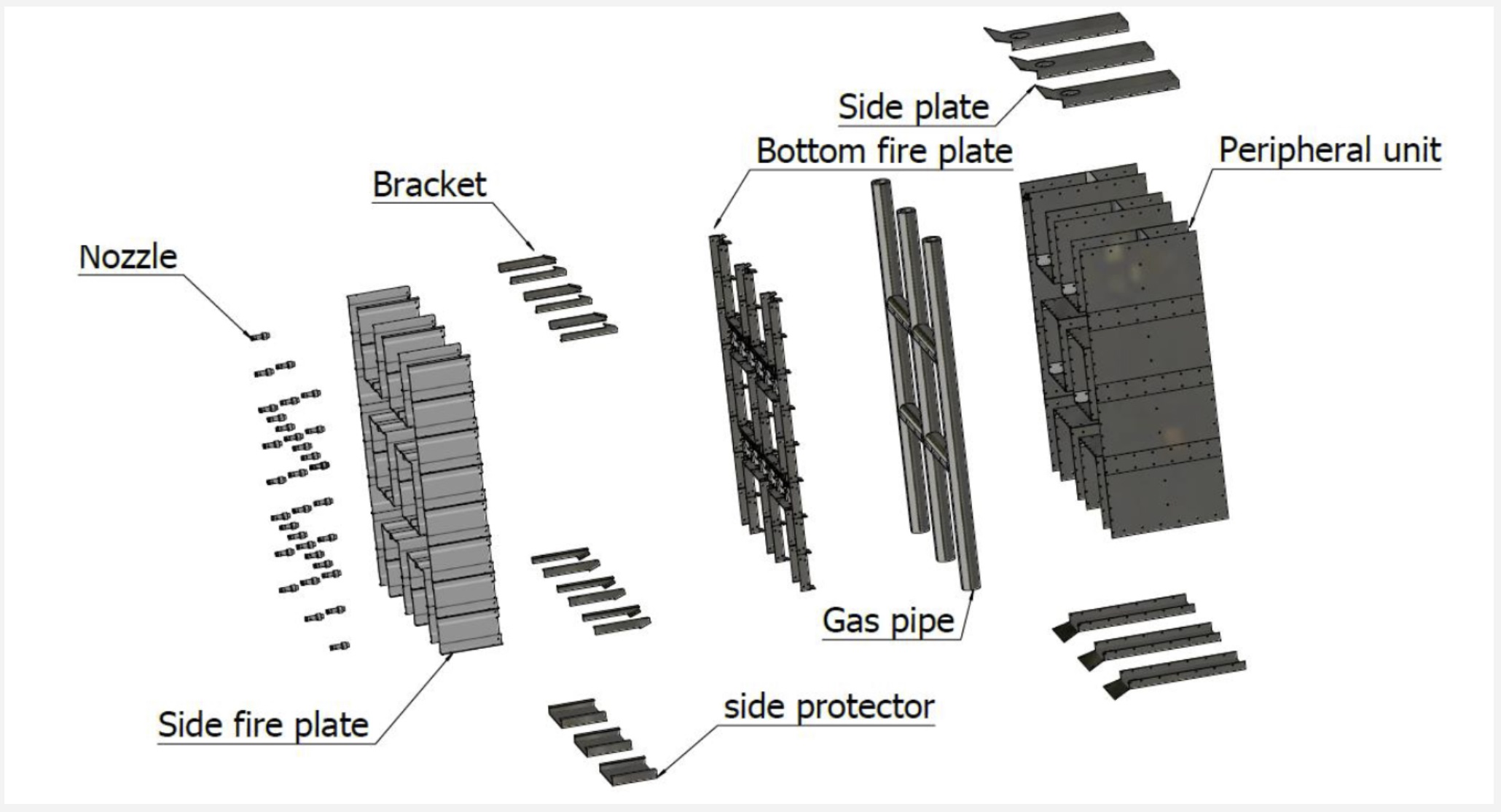

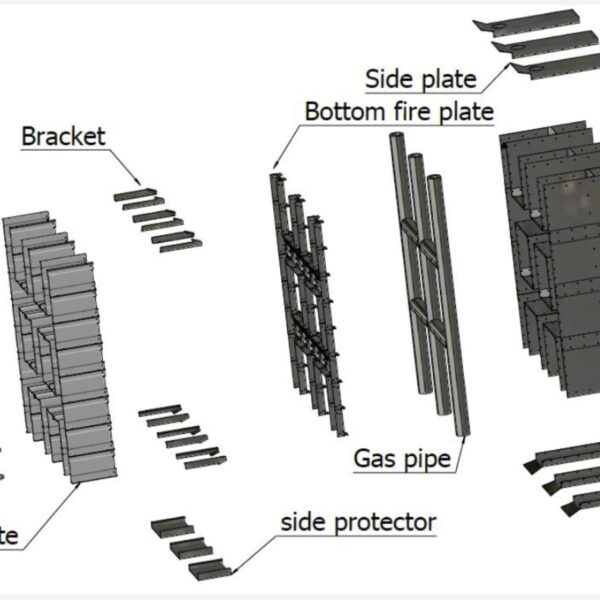

- All stainless steel design. Fuel is delivered to the center from gas inlet flange, and the side plate distributes the fresh air to the center. The swirl flame generate strong mixing effect with process air
- Modular design
Contact Customer Service
Reach a Real Person @: 1-800-922-7533
Open Monday – Friday, 8:00am – 5:00pm CST
Same Day Support Response
- Duct burner for air heating
- Fuel type: natural gas
- Combustion air: fresh air
- Capacity range: modular design, customized
- Maximum temperature: upstream 500„ƒ, downstream 850„ƒ
- Turndown ratio: 20:1
- Low NOx emissionThis series burner is duct heating burner, large amount of air passes through the burner and be heated, enters into the drying room. Both packaged blower and remote blower are available.
Typical Applications
- Gypsum board drying
- HRSG
- Other supplementary heating industry
Technical Data
- Maximum output: 920KW/m, or 110KW per module
- Minimum output: 23KW/m, or 2.75KW per module
- Flame length: 1000mm maximum capacity
- Maximum upsteam temperature: 500„ƒ
- Maximum downsteam temperature: 850„ƒ
