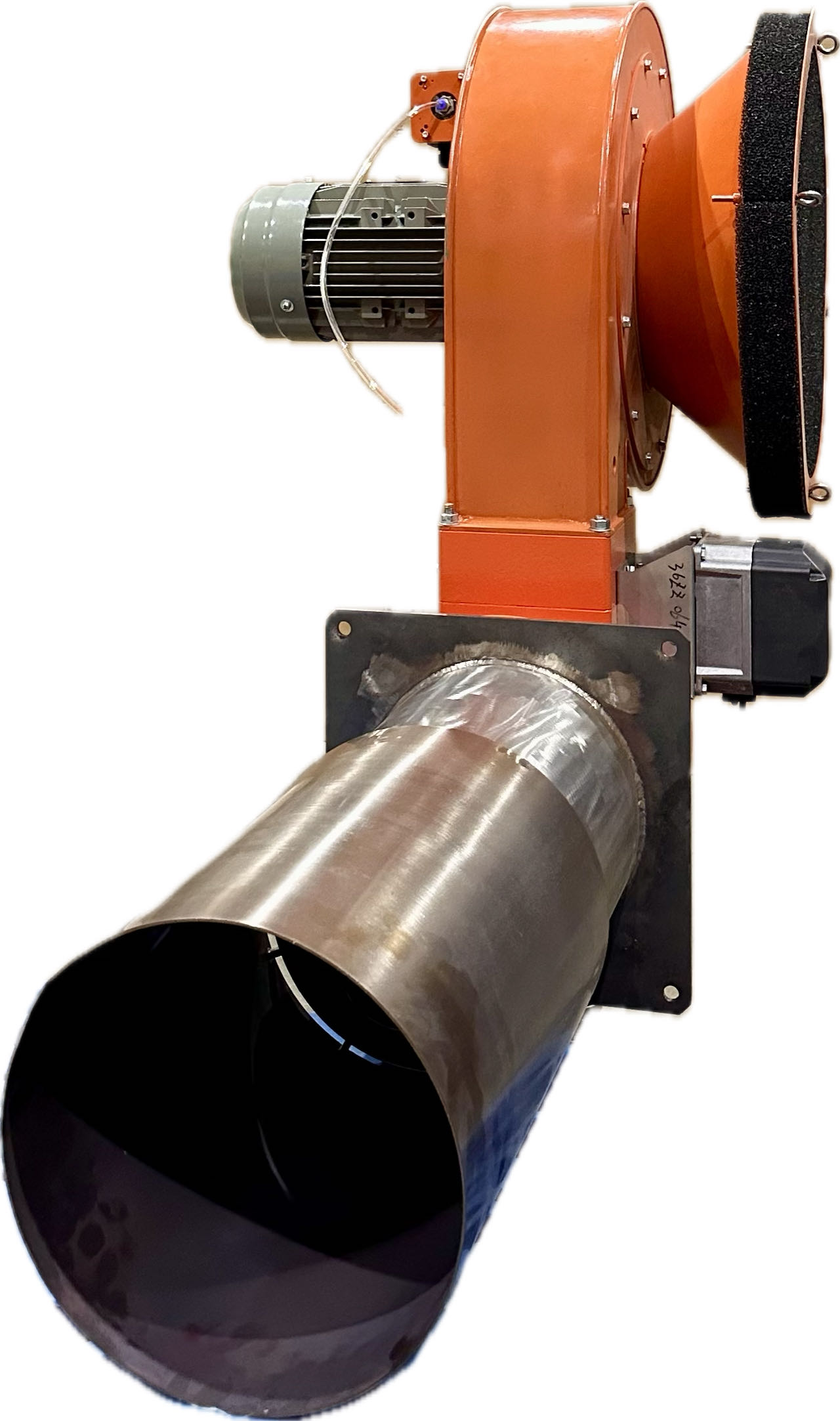

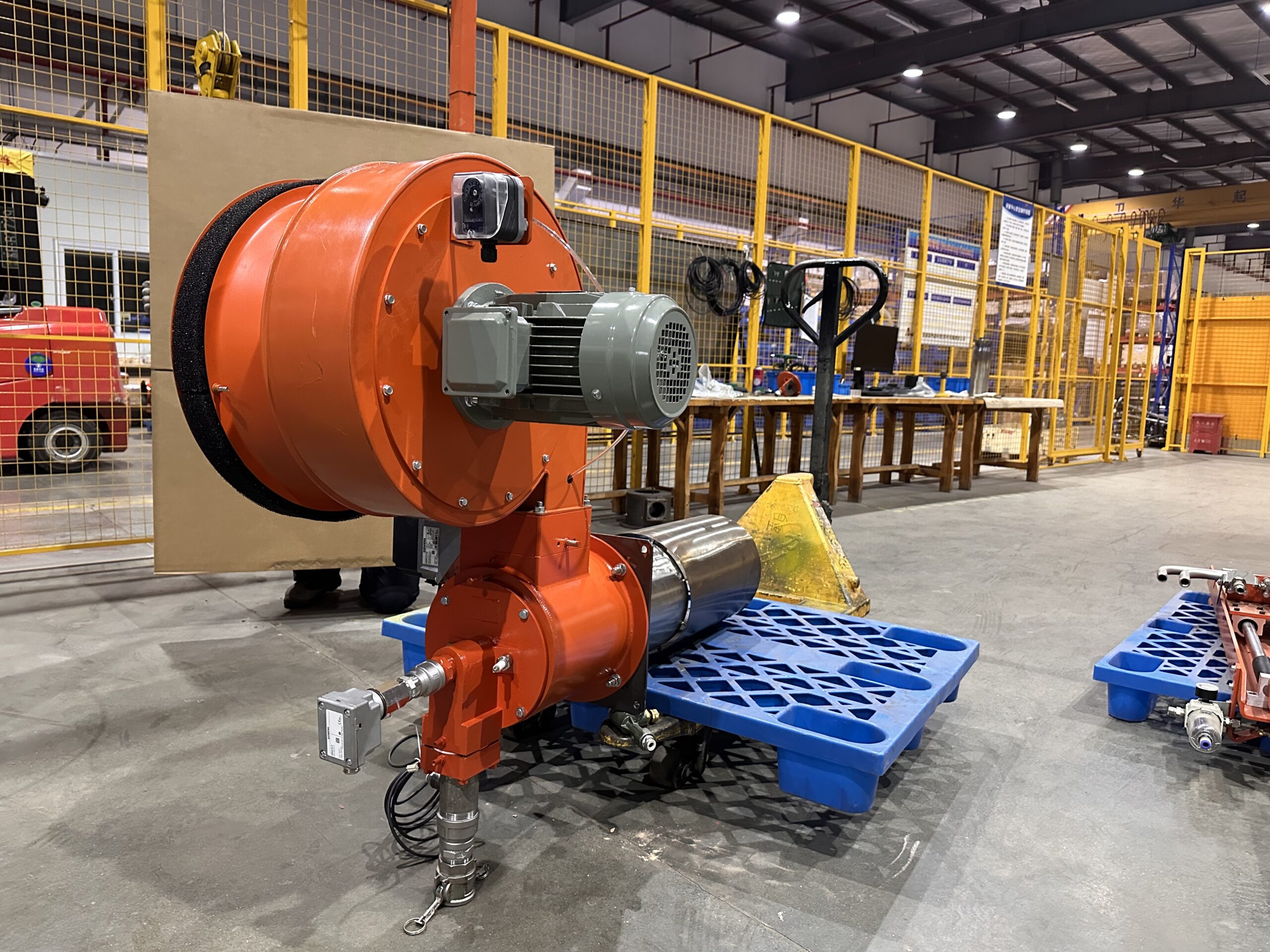

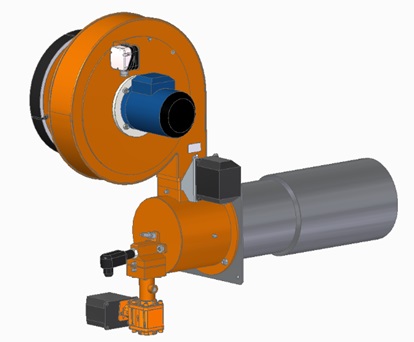

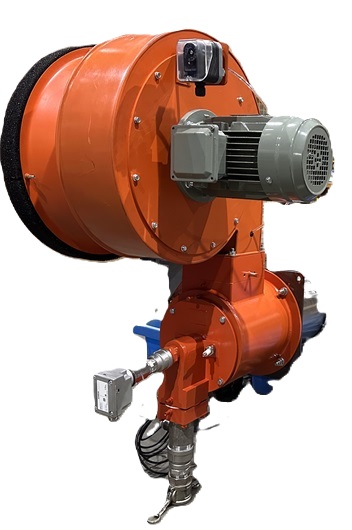

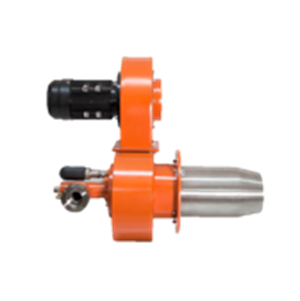

ANX 70 Series – Flexfire® Burner
ANX70″Anti NOx® Air burner is a trademark of Anderson Thermal Solutions (Suzhou) Co., Ltd., it is designed for automobile dryer ovens with staged combustion air, with low NOx emission level and good combustion efficiency. Anderson owns its IP and copyright. The heat input ranges from 7 ” 900 kW, with a max. oven temperature at 950°C. Good for automobile dryer ovens and food indirect heating applications.
Product Description
- Max input was tested with a clean combustion air blower filter
- Above data is from the lab, actual data may vary by oven dimension and condition
- Heat input is based on net heat value (HHV) and normal condition: 1 atmosphere, 20°C.
- Anderson Thermal Solutions (Suzhou) Co., Ltd reverse rights for modification without notice.
Contact Customer Service
Reach a Real Person @: 1-800-922-7533
Open Monday – Friday, 8:00am – 5:00pm CST
Same Day Support Response
- Max input was tested with a clean combustion air blower filter
- Above data is from the lab, actual data may vary by oven dimension and condition
- Heat input is based on net heat value (HHV) and normal condition: 1 atmosphere, 20°C.
- Anderson Thermal Solutions (Suzhou) Co., Ltd reverse rights for modification without notice.

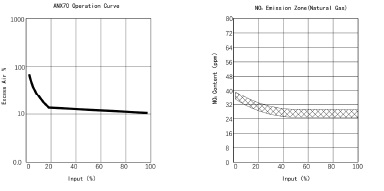

Emission data is from the lab’s actual test, test condition as:
- 950°C Oven temperature
- Excess air 3% O2

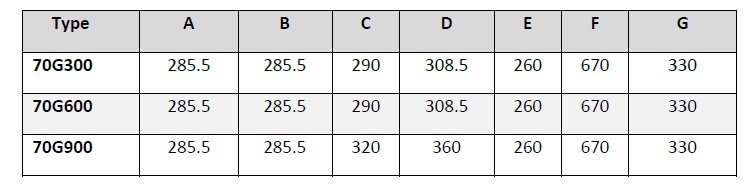

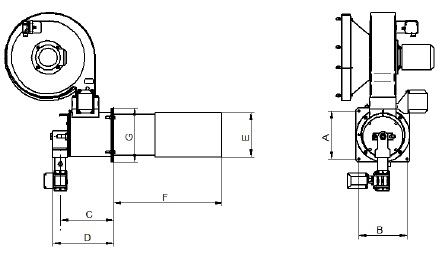

ANX70 Series Installation Dimension
ANX70 Series burner installation dimension shown as follows:
