Milling Machine Control

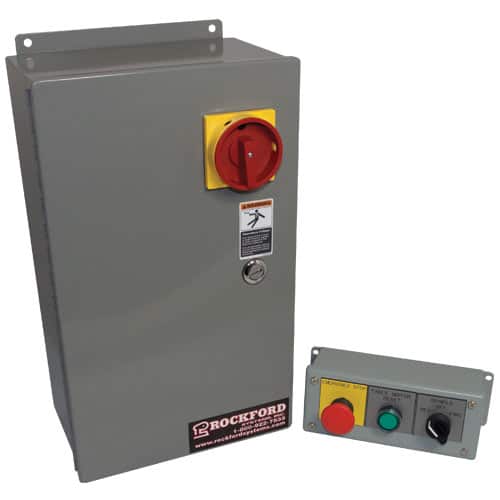

Themilling machine control is designed for vertical milling machines that have a table motor. Each milling machine control is housed in a NEMA 12 enclosure that includes a disconnect switch, reversing magnetic main drive motor starter, a control relay for the table motor, and a 100 VA transformer that is generically numbered and wired to terminals. A remote station provides the operator controls consisting of a self-latching red emergency-stop palm button, an illuminated green table motor reset push button, and a main motor reverse/off/forward selector switch. These vertical milling machine controls are available for machines with 208, 230 or 460 VAC and 1 to 5 HP.
