Filter-Regulator-Lubricators (FRLs)

Part No. RCL-043 1/4″ FILTER-REGULATOR-LUBRICATOR ASSEMBLY (FRL)

This assembly is needed to meet the OSHA and ANSI requirements. The FRL assembly filters, regulates, and lubricates the air going through it. This filtered and lubricated air then goes to the solenoid air valve assembly and air cylinder. The regulator should be adjusted so just enough air pressure reaches the air cylinder to operate the clutch. This assembly includes a gauge, coupling, and steel mounting bracket.

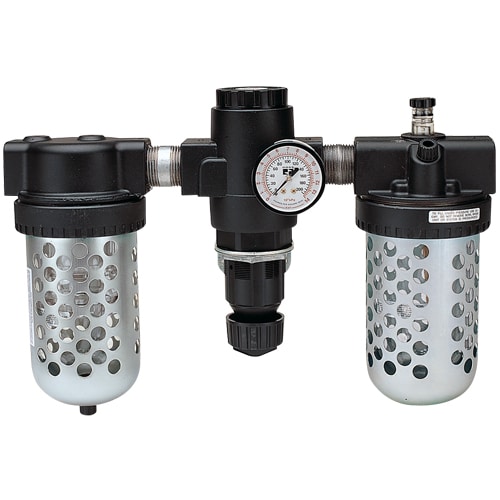

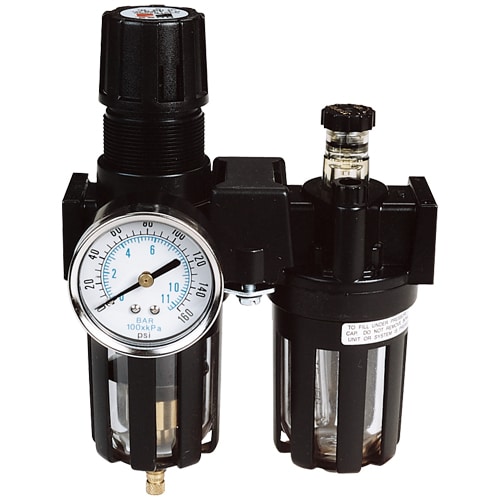

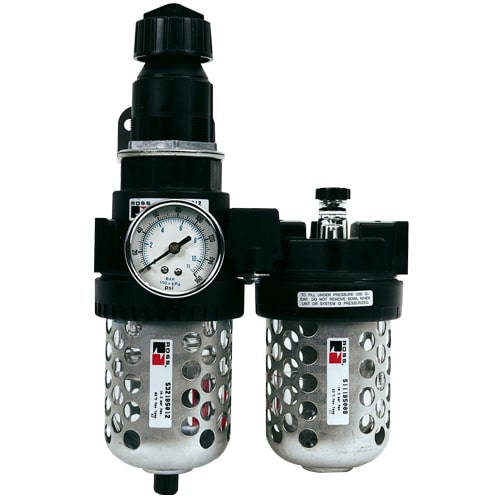

Part Numbers. RCL-044, RCL-045, RCL-046, and RCL-047

This assembly is required to meet the OSHA and ANSI requirements. The FRL assembly filters, regulates, and lubricates the air going through it. This filtered and lubricated air then goes to the dual-solenoid air valve assembly and clutch/brake. The regulator should be adjusted to meet the original equipment manufacturer’s requirements. The assembly includes a gauge, coupling, and a steel mounting bracket. The FRL assembly can be used for any air-operated device on the press including the counterbalance or die cushion.
