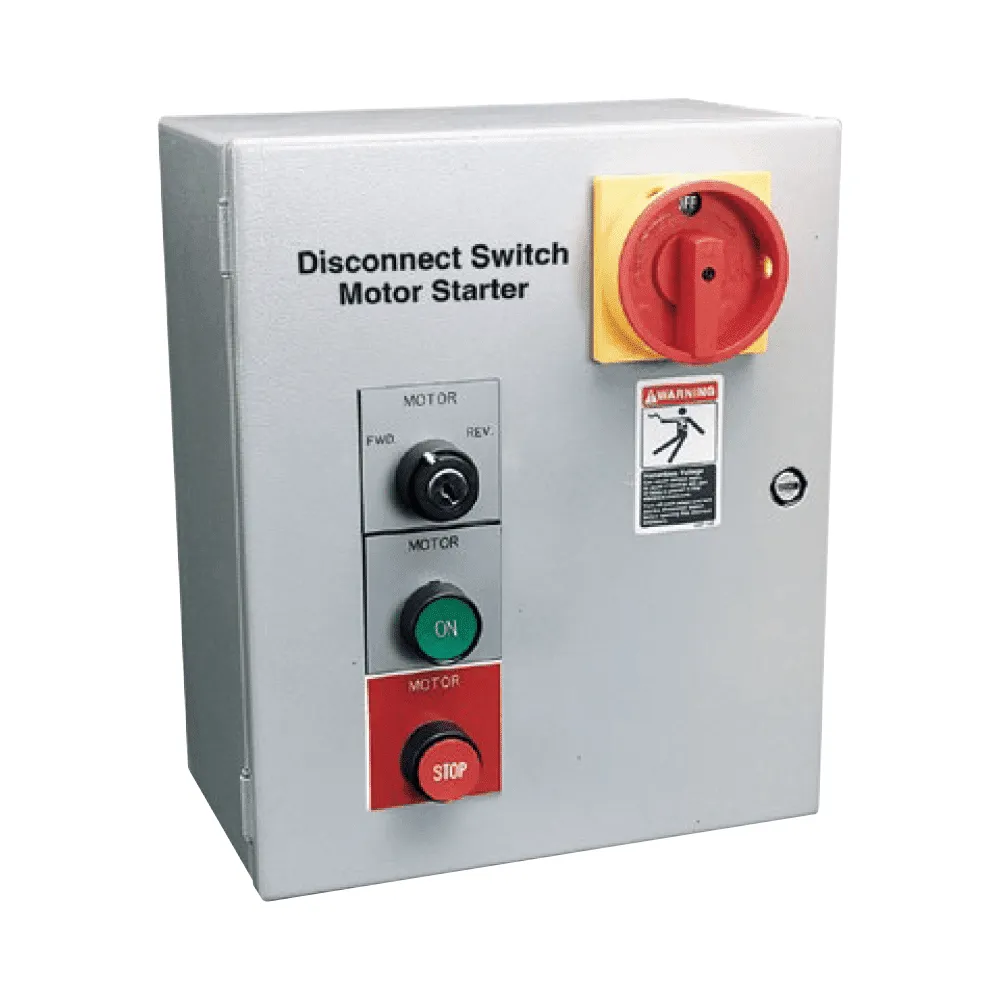

These three-phase disconnect/starters are housed in a NEMA 12 metal enclosure. The enclosure size will vary depending on the motor starter required.
These units can be used on machines with 208, 230, 460, or 575 V. They are furnished with an overload relay and have operating coils of 115V, 60Hz. The disconnect operating handle is lockable in the off position only. These combination units meet OSHA regulations, ANSI standards, and NFPA 79.
To obtain the part number of the motor starter required, please refer to the first part numbering chart below.
A remote station is required when using any plain-door starter. To obtain the part number of the remote operator station required, please refer to the second part numbering chart below.
