Non-locking Safety Switches—Flat-Pack Style


2 NC & 1 NO Safety Contacts*

*With actuator engaged

Product Description

These tamper-resistant safety switches can be used to interlock hinged, sliding, or lift-off guards. Closure of the guard or latch causes the actuator to enter the switch and release the dual anti-tamper locking cams. The actuator allows the main center cam to rotate and make the switch contacts. When opening the guard or latch, the actuator positively forces the contacts open due to the cam action built into the switch. These versatile switches have multiple actuation entry positions. They are available in either straight or flexible formation options.

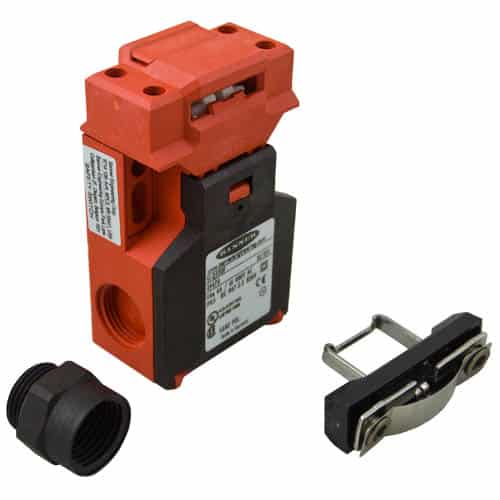

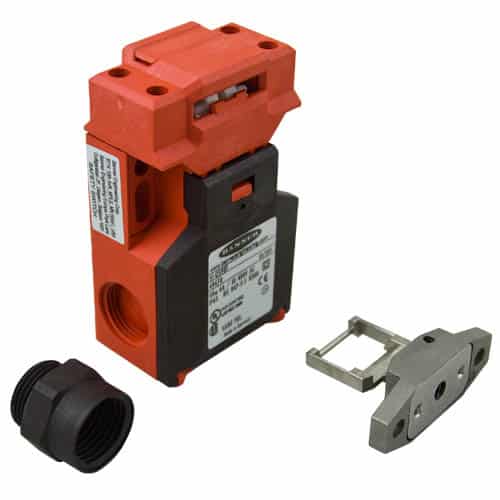

Kit includes switch, actuator, and conduit adapter. Contact arrangement is with actuator engaged.
