Product Description

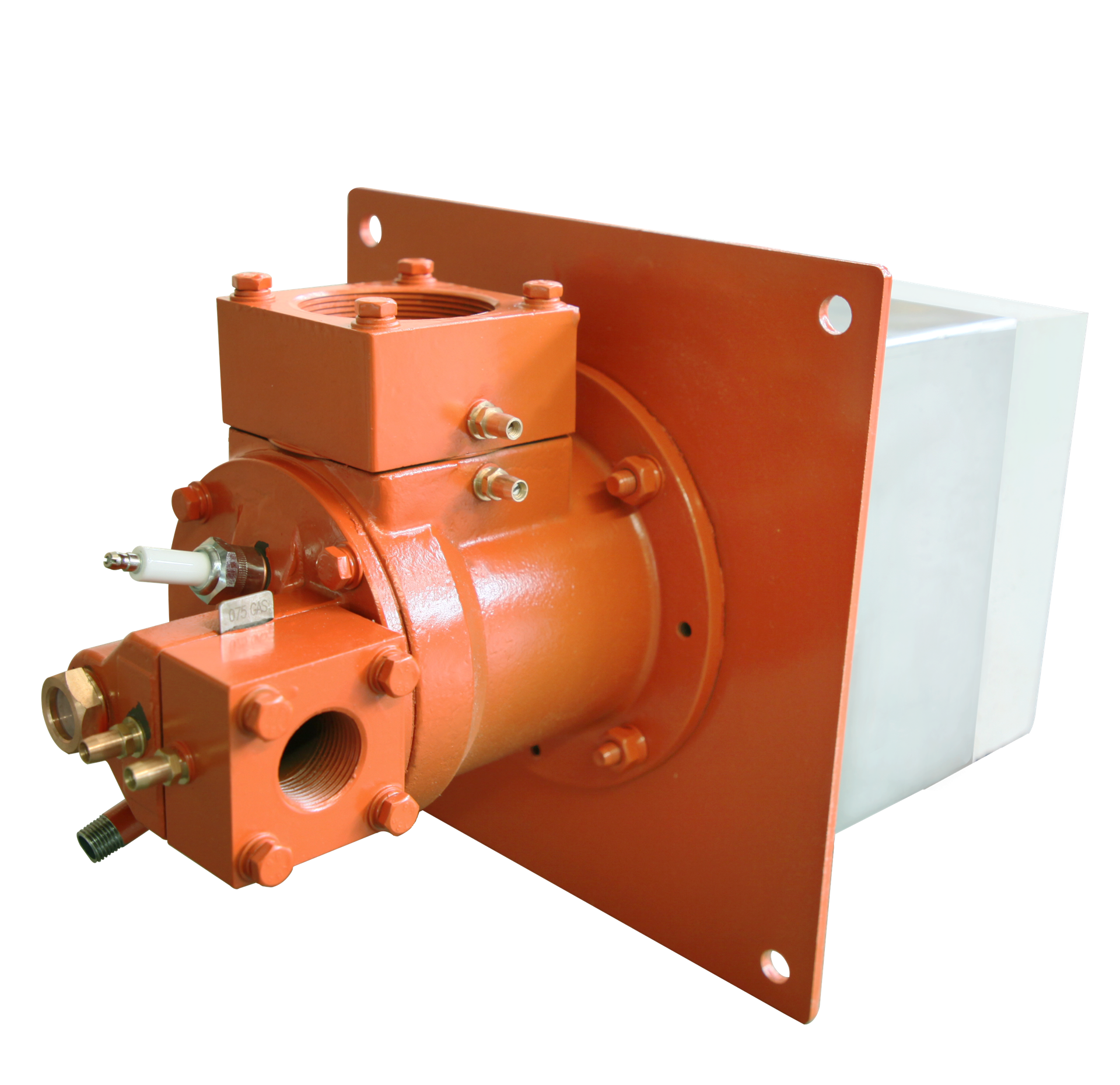

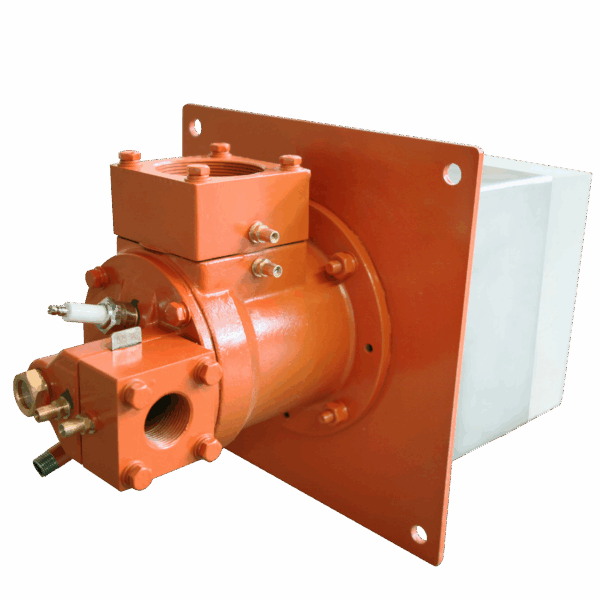

- SSA80 series burner is Anderson Thermal Solutions patented product
- Good flame rigidity and high flame speed, special designed for industrial kiln
- Due to special nozzle structural design, the mixing chamber can hold the flame at a very low power output
- Compact structure design, easy for install and maintenance
- Good for incineration combustion
Contact Customer Service
Reach a Real Person @: 1-800-922-7533
Open Monday – Friday, 8:00am – 5:00pm CST
Same Day Support Response
- Â Fuel type: natural gas
- Combustion air: fresh air, preheated air
- Mixing type: Nozzle mixing
- Capacity range: 150-6000KW
- Maximum temperature: 1300„ƒ
- Turndown ratio: 50:1
This series burner have high flame velocity, high flame rigidity, and good combustion effect:
- Tempering furnace
- Metal smelting
- Ladle preheating
- Quenching furnace
- Incineration
- Etc.
Typical Applications
- Gypsum board drying
- HRSG
- Other supplementary heating industry
Technical Data
