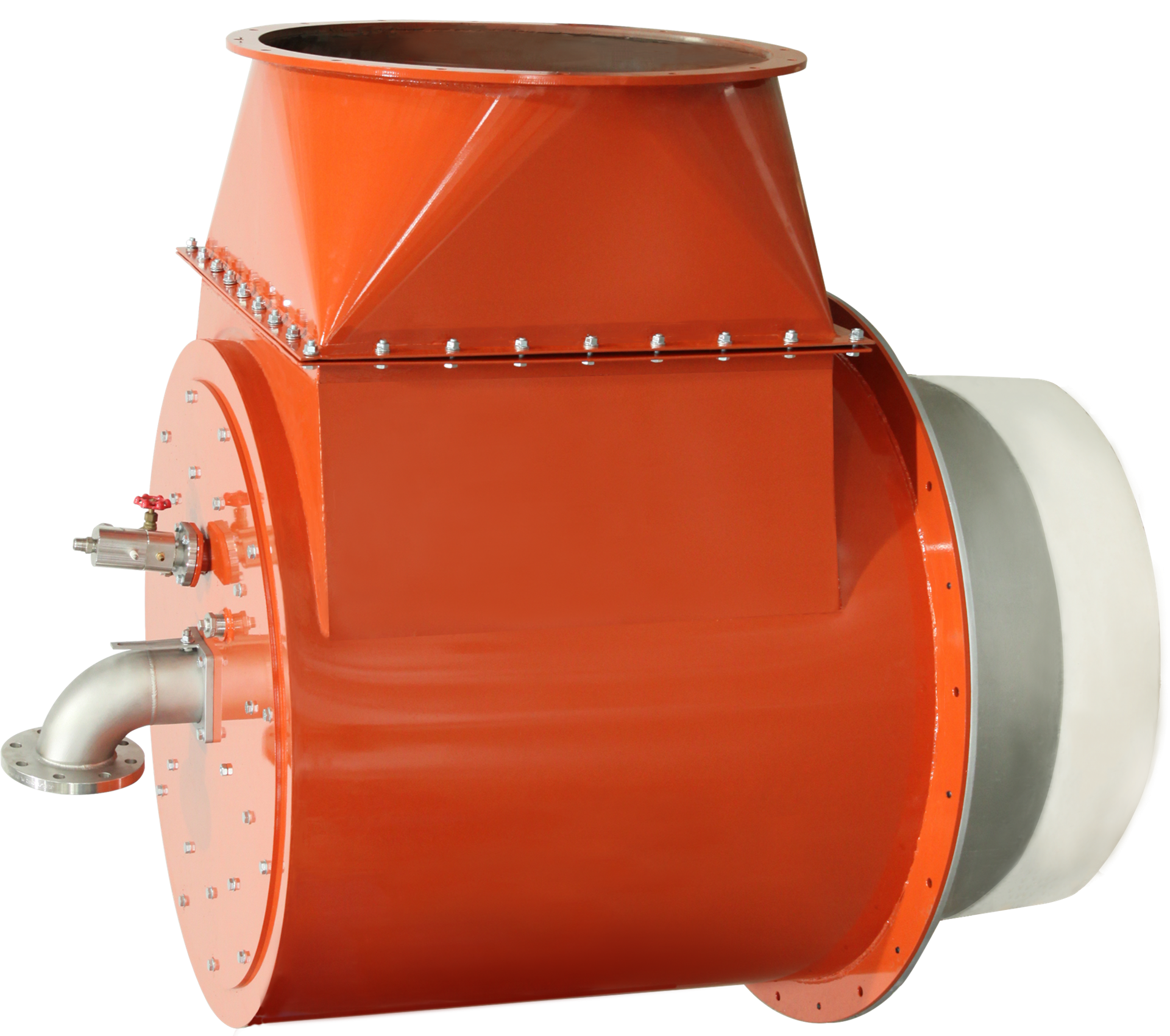

Product Description
- VFS82 series burner is Anderson Thermal Solutions patented product, special designed for high power capacity requirement
- Suitable for large dryers, calciners, boilers, etc.
This series burner is nozzle mixing burner, have two types:
- VFS82L type with small flame radius and long flame length
- VFS82W with large flame radius and short flame length
Contact Customer Service
Reach a Real Person @: 1-800-922-7533
Open Monday – Friday, 8:00am – 5:00pm CST
Same Day Support Response
- Fuel type: natural gas, diesel
- Combustion air: fresh air
- Capacity range: 0.1MW-62MW
- Maximum temperature: 1200„ƒ
- Turndown ratio: 25:1Combustion air swirl design, which helps to mix the air and gas more efficiently, achieve better combustion
- Low NOx emission
Typical Applications
- Building material such as gypsum power and cement drying
- Metal power drying
- Other large dryers, rotary kilns and calciners
Technical Data
