Die Safety Block 9′ Lengths or by the Inch
Product Description

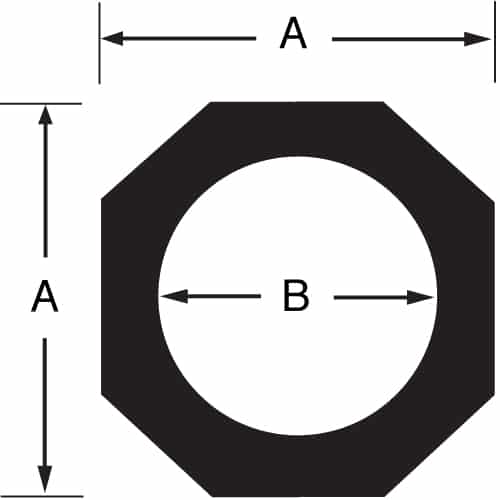

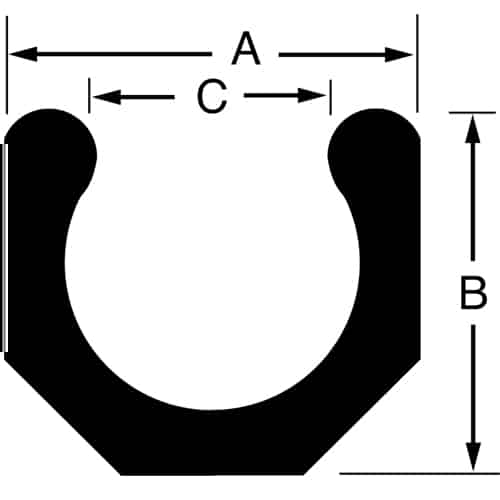

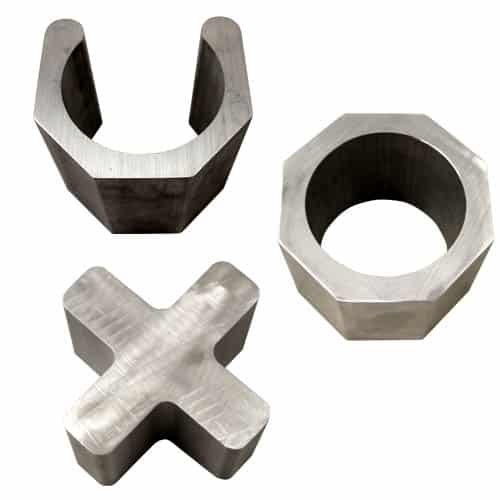

Die Safety Blocks are available in Octagonal-, X- and U-Shaped Profiles.
These die safety blocks are sold in 9-foot lengths or by the inch. Please refer to the individual tabs below for specific details on each shape and size.
To learn more about die blocks, we invite you to read our blog post “Demystifying Die Safety Blocks.”
EXTENDED LEAD TIMES MAY APPLY, PLEASE CONTACT 1-800-922-7533 FOR MORE INFORMATION
*Please note that die safety blocks need to shipped by truck.
Contact Customer Service
Reach a Real Person @: 1-800-922-7533
Open Monday – Friday, 8:00am – 5:00pm CST
Same Day Support Response
