Products \ Machine Safeguarding \ Self-Ejecting Lathe Chuck Wrenches

Self-Ejecting Lathe Chuck Wrenches

SKU: LCWSERIES Categories: , Tag:

$394.16 – $524.51

    Categories: ,

    Product Description

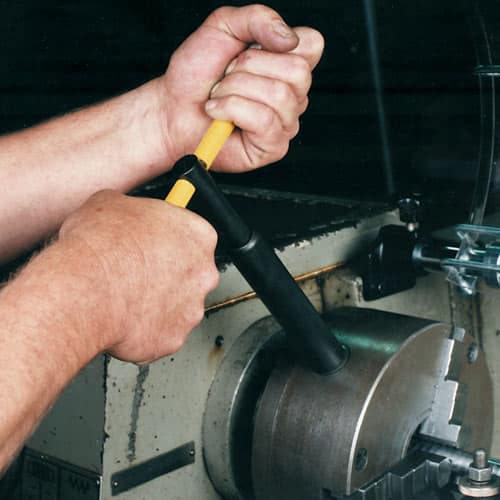

    Lathe chuck wrenches help prevent one of the most common accidents on lathes: when a chuck wrench (or key) is thrown from the chuck. This happens when someone forgets to remove the chuck wrench from the chuck before the machine is turned on.

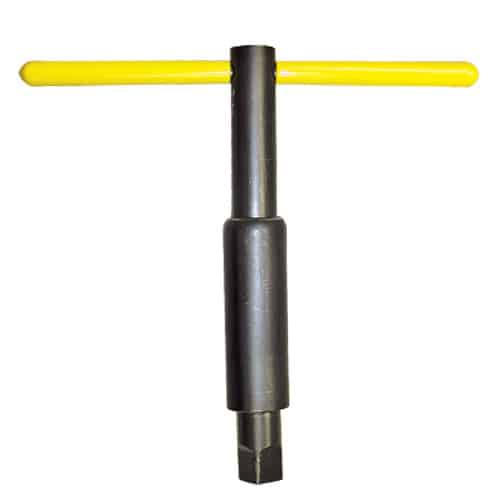

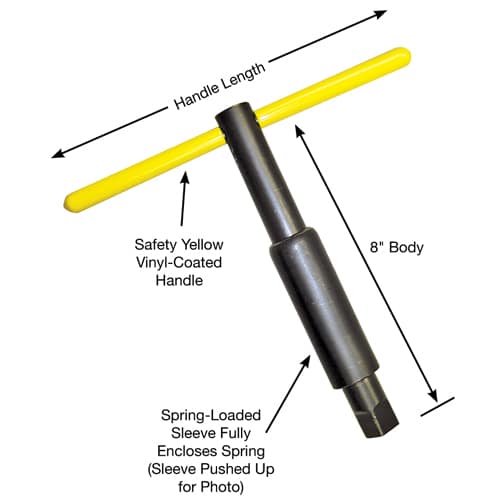

    A self-ejecting, spring-loaded chuck wrench can be used on lathes or other machines equipped with manually adjusted chucks. The spring-loaded sleeve ejects the wrench from the chuck after each use. These wrenches are engineered and designed to provide proper loads for self-removal of the wrench weight.

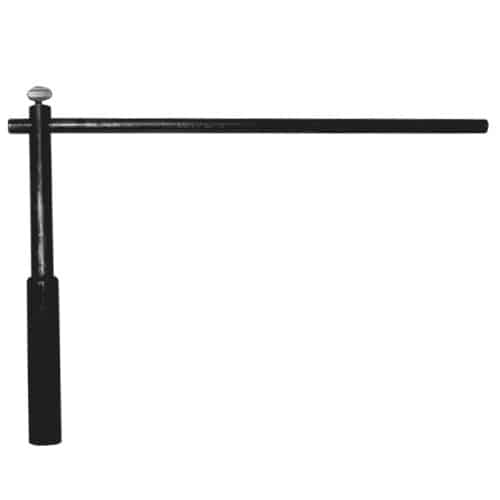

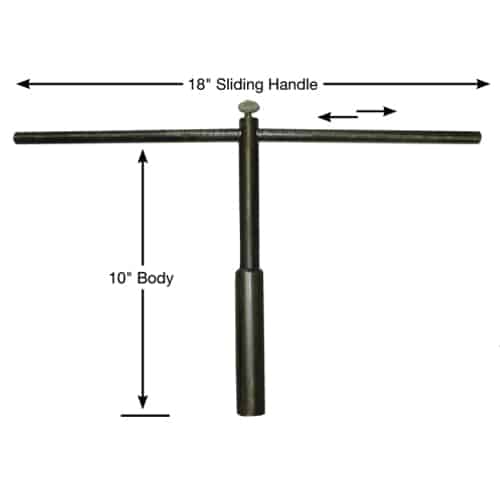

    The standard lathe chuck wrench has a stationary 5 1/2-inch or 9 1/2-inch handle and 8-inch long body. The longer-handle lathe chuck wrench has a sliding, 18-inch handle and 10-inch long body.

    Chuck wrenches are available in both inches and millimeters, as well as hexagon and square shaped.

    Contact Customer Service

    Reach a Real Person @: 1-800-922-7533

    Open Monday – Friday, 8:00am – 5:00pm CST

    Email Support

    Same Day Support Response

      SKUHandle TypeInches or MetricNominal Size
      f5a7c84ef581standardinches3/8-inch hexagon (.365-inch actual size)
      1180b9016648standardinches9/16-inch hexagon (.552-inch actual size)
      c336e823d312standardmetric11MM hexagon
      78631a4bb530standardinches3/8-inch hexagon (.365-inch actual size)
      63a99723ebb3standardinches9/16-inch hexagon (.552-inch actual size)
      4feb2371a184standardmetric11MM hexagon
      CWHM0281Llongerinches9/32-inch hexagon (.271-inch actual size)
      CWHM0312Llongerinches5/16-inch hexagon (.303-inch actual size)
      CWHM0375Llongerinches3/8-inch hexagon (.365-inch actual size)
      CWHM0438Llongerinches7/16-inch hexagon (.427-inch actual size)
      CWHM0500Llongerinches1/2-inch hexagon (.490-inch actual size)
      CWHM0563Llongerinches9/16-inch hexagon (.552-inch actual size)
      CWHM0625Llongerinches5/8-inch hexagon (.615-inch actual size)
      CWHM0688Llongerinches11/16-inch hexagon (.678-inch actual size)
      CWHM0750Llongerinches3/4-inch hexagon (.740-inch actual size)
      CWHM08MMLlongermetric8MM hexagon
      CWHM06MMSstandardmetric6MM hexagon
      CWHM09MMLlongermetric9MM hexagon
      CWHM10MMLlongermetric10MM hexagon
      CWHM11MMLlongermetric11MM hexagon
      CWHM12MMLlongermetric12MM hexagon
      CWHM13MMLlongermetric13MM hexagon
      CWHM14MMLlongermetric14MM hexagon
      CWHM15MMLlongermetric15MM hexagon
      CWHM16MMLlongermetric16MM hexagon
      CWHM17MMLlongermetric17MM hexagon
      CWHM18MMLlongermetric18MM hexagon
      CWHM0250Sstandardinches1/4-inch hexagon (.240-inch actual size)
      CWHM0281Sstandardinches9/32-inch hexagon (.271-inch actual size)
      CWHM0625Sstandardinches5/8-inch hexagon (.615-inch actual size)
      CWHM0688Sstandardinches11/16-inch hexagon (.678-inch actual size)
      CWHM0750Sstandardinches3/4-inch hexagon (.740-inch actual size)
      CWHM0500Sstandardinches1/2-inch hexagon (.490-inch actual size)
      CWSM06MMSstandardmetric6MM square
      CWSM07MMSstandardmetric7MM square
      CWSM08MMSstandardmetric8MM square
      CWSM09MMSstandardmetric9MM square
      CWSM10MMSstandardmetric10MM square
      CWSM11MMSstandardmetric11MM square
      CWSM12MMSstandardmetric12MM square
      CWSM13MMSstandardmetric13MM square
      CWSM14MMSstandardmetric14MM square
      CWSM15MMSstandardmetric15MM square
      CWSM16MMSstandardmetric16MM square
      CWSM17MMSstandardmetric17MM square
      CWSM18MMSstandardmetric18MM square
      CWHM07MMSstandardmetric7MM hexagon
      CWHM08MMSstandardmetric8MM hexagon
      CWHM09MMSstandardmetric9MM hexagon
      CWHM10MMSstandardmetric10MM hexagon
      CWHM12MMSstandardmetric12MM hexagon
      CWHM13MMSstandardmetric13MM hexagon
      CWHM14MMSstandardmetric14MM hexagon
      CWHM15MMSstandardmetric15MM hexagon
      CWHM16MMSstandardmetric16MM hexagon
      CWHM17MMSstandardmetric17MM hexagon
      CWHM18MMSstandardmetric18MM hexagon
      CWSM08MMLlongermetric8MM square
      CWSM09MMLlongermetric9MM square
      CWSM10MMLlongermetric10MM square
      CWSM11MMLlongermetric11MM square
      CWSM12MMLlongermetric12MM square
      CWSM13MMLlongermetric13MM square
      CWSM14MMLlongermetric14MM square
      CWSM15MMLlongermetric15MM square
      CWSM16MMLlongermetric16MM square
      CWSM17MMLlongermetric17MM square
      CWSM18MMLlongermetric18MM square
      CWSM0250Sstandardinches1/4-inch square (.240-inch actual size)
      CWSM0281Sstandardinches9/32-inch square (.271-inch actual size)
      CWSM0312Sstandardinches5/16-inch square (.303-inch actual size)
      CWSM0375Sstandardinches3/8-inch square (.365-inch actual size)
      CWSM0438Sstandardinches7/16-inch square (.427-inch actual size)
      CWSM0500Sstandardinches1/2-inch square (.490-inch actual size)
      CWSM0563Sstandardinches9/16-inch square (.552-inch actual size)
      CWSM0625Sstandardinches5/8-inch square (.615-inch actual size)
      CWSM0688Sstandardinches11/16-inch square (.678-inch actual size)
      CWSM0750Sstandardinches3/4-inch square (.740-inch actual size)
      CWSM0281Llongerinches9/32-inch square (.271-inch actual size)
      CWSM0312Llongerinches5/16-inch square (.303-inch actual size)
      CWSM0375Llongerinches3/8-inch square (.365-inch actual size)
      CWSM0438Llongerinches7/16-inch square (.427-inch actual size)
      CWSM0500Llongerinches1/2-inch square (.490-inch actual size)
      CWSM0563Llongerinches9/16-inch square (.552-inch actual size)
      CWSM0625Llongerinches5/8-inch square (.615-inch actual size)
      CWSM0688Llongerinches11/16-inch square (.678-inch actual size)
      CWSM0750Llongerinches3/4-inch square (.740-inch actual size)
