Products \ Machine Safeguarding \ Safety Shields \ Rigid-Arm Magnetic Base Chip Shields

Rigid-Arm Magnetic Base Chip Shields

SKU: RIGIDSERIES Categories: ,

$259.84 – $569.71

Categories: ,

Product Description

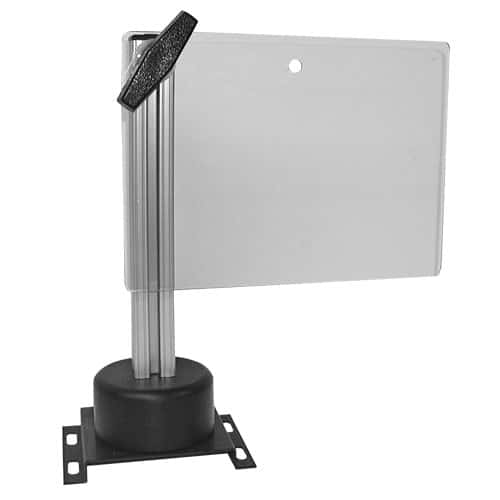

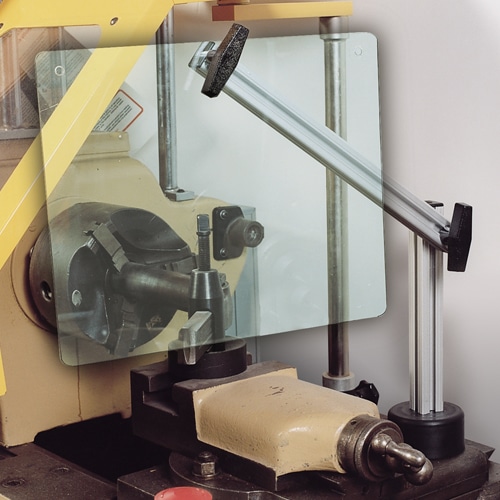

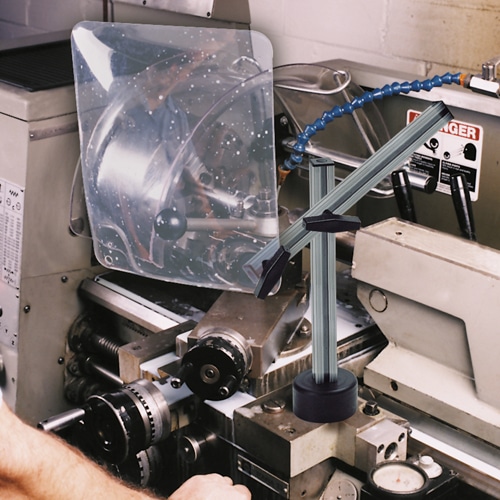

The magnetic base chip shields can be used on lathes, small milling machines, drills, grinders, band saws, etc. These shields can be attached to any ferrous surface on the machine by an 80-lb. pull magnetic base. If a flat, smooth, ferrous surface is not available, a mounting plate (3 1/2″ x 4 5/8″) is also furnished. Large polypropylene plastic handles are used for easy positioning and locking.

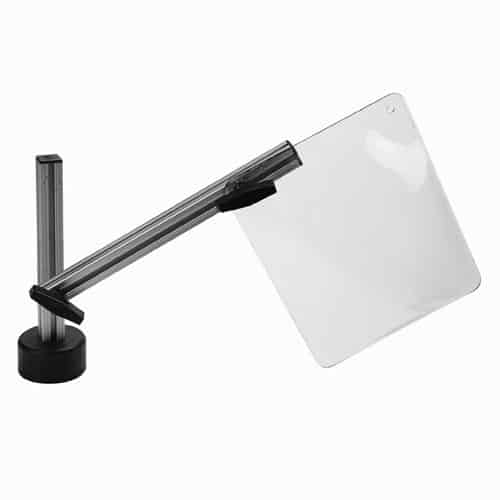

The transparent portion of the chip shield is constructed of high-impact-resistant, 3/16″-thick clear poly-carbonate material. It is furnished with a circular base which measures 3 1/4″ in diameter. An 8″ aluminum base extrusion is provided and attaches to the magnetic base. Also available is a 12″ extruded-aluminum arm extension. This arm can be cut to a shorter length if required for your application.

Contact Customer Service

Reach a Real Person @: 1-800-922-7533

Open Monday – Friday, 8:00am – 5:00pm CST

Email Support

Same Day Support Response

SKUArm LengthShield Type
CBS1C18-inch arm6-inch x 8-inch flat shield
CBS1C1B8-inch arm with 12-inch arm extension6-inch x 8-inch flat shield
CBS2C18-inch arm10-inch x 12-inch flat shield
CBS2C1B8-inch arm with 12-inch arm extension10-inch x 12-inch flat shield
CBS3C18-inch arm14-inch x 16-inch flat shield
CBS3C1B8-inch arm with 12-inch arm extension14-inch x 16-inch flat shield

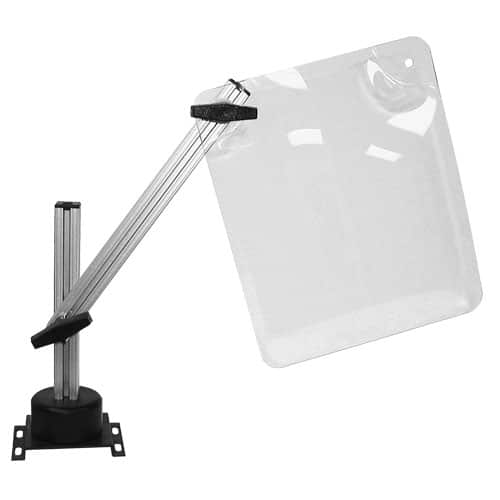

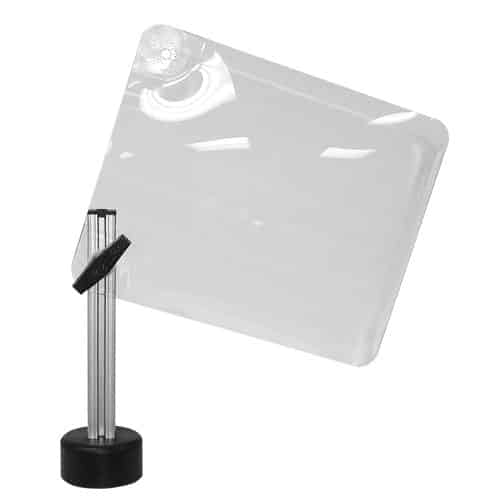

CBS6C18-inch arm8-inch x 10-inch concave shield
CBS6C1B8-inch arm with 12-inch arm extension8-inch x 10-inch concave shield
CBS7C18-inch arm10-inch x 12-inch concave shield
CBS7C1B8-inch arm with 12-inch arm extension10-inch x 12-inch concave shield
