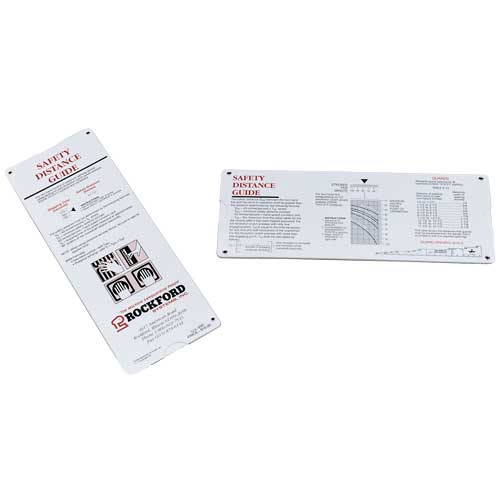

Safety Distance Guide Slide Chart (LLL050)
$28.25
Product Description
This slide chart calculates the safety distance for mounting two-hand trip, two-hand control, and presence-sensing devices on machinery.
