Single-Phase Starter With Self-Latching Emergency-Stop Button, 3/4 HP Max (CSF082)
$624.59
Product Description

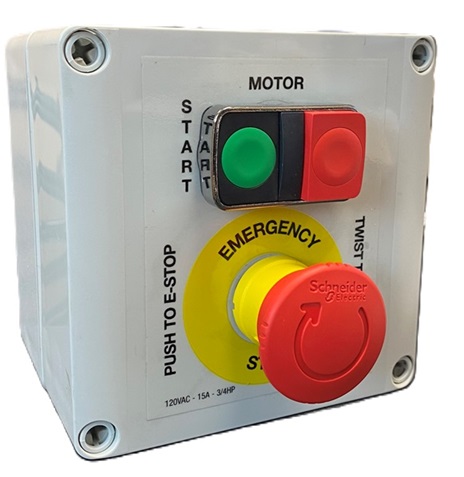

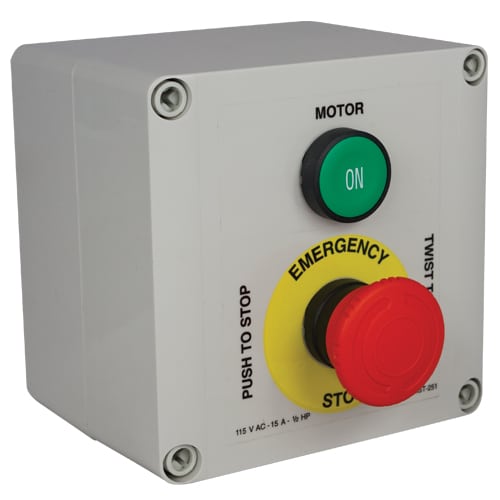

The 115VAC, 20A non-reversing magnetic motor starter, self-latching red emergency-stop palm button, green motor control on push button and red motor control off push button are housed in a NEMA 4 polycarbonate enclosure. Enclosure size is 5″ x 5″ x 4″. It can be used for machines with 115VAC power and is rated up to 3/4 HP maximum at 115VAC. For machines with 230VAC single-phase motors, a transformer is required to reduce the control circuit voltage to 115VAC in order to comply with NFPA 79. See the RSD series disconnect switches, motor starters, and combinations
115 V, 3/4 HP max.
